Central Glass and Windows are fabricators and installers of Smart Architectural Aluminium. We offer a number of thermally broken window and door options to meet with your requirements, ranging from Alitherm 600 to the Alitherm Heritage window systems and Visoglide Plus patio door to the Visofold 1000 doors.

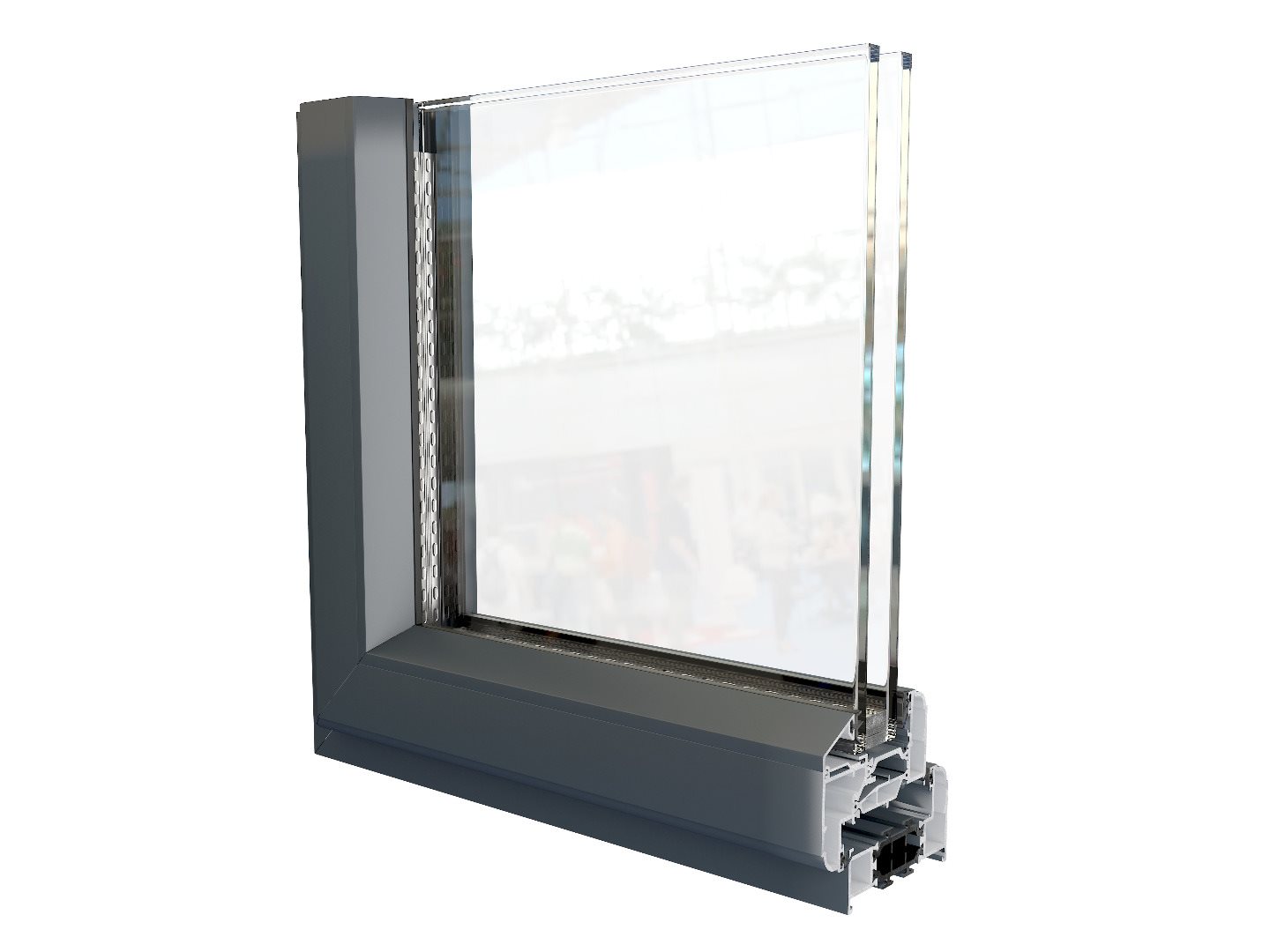

Alitherm 600 Window
The Alitherm 600 series offers a range of high quality glazing solutions for side hung open out windows, suitable for both the residential and commercial markets.
Available in a choice of standard or non-standard colours, including metallic, dual colour, Smart’s Sensations textured, and Alchemy anodised effect finishes.
Dimensions:
- Side Hung Max Width 1000mm
- Side Hung Max Height 1400mm
- Top Hung Max Width 1400mm
- Top Hung Max Height 1500mm
- Glazing 28mm to 36mm double and triple glazed
- Frame depth 59mm and 79mm
Alitherm 600 Specification:
- Energy rating of B
- U Value of 1.3W/m2K
- Air Class 4, 600Pa
- Water Class E, 1200PA
- Wind Class AE, 2400Pa
- Document L Compliant
- PAS 24:2012

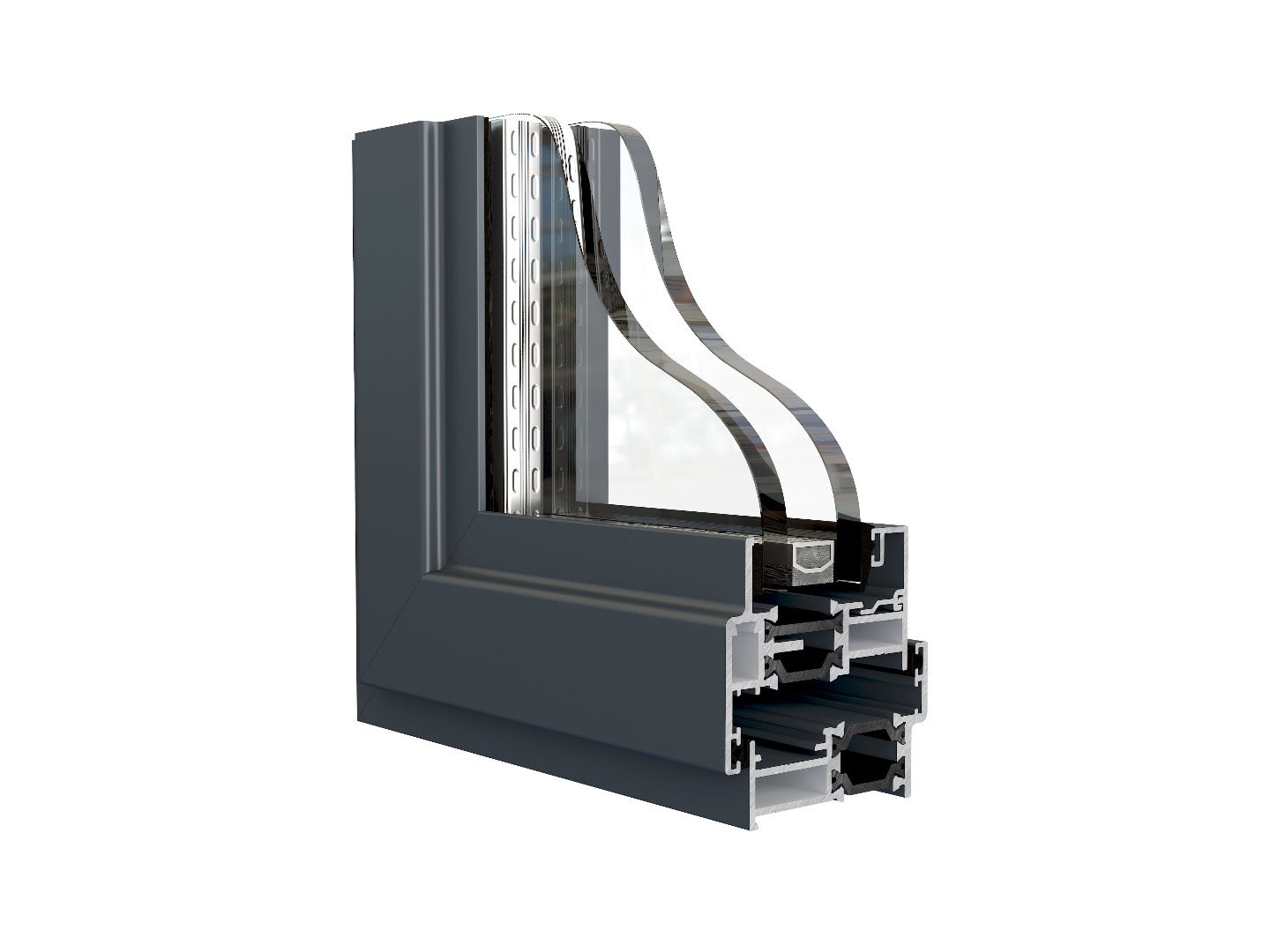

Alitherm Heritage Window
Alitherm Heritage has been designed to offer a modern solution for heritage and renovations applications where the requirement to replace old steel windows is essential.
This system provides the ideal solution for heritage applications such as listed building renovations and large-scale replica-refurbishment projects where planning constraints are to be considered.
Dimensions:
- Side Hung Max Width 700mm
- Side Hung Max Height 1400mm
- Top Hung Max Width 1400mm
- Top Hung Max Height 1300mm
- Glazing 24mm,28mm,32mm to 36mm double and triple glazed
- Frame depth 47mm
Alitherm Heritage Specification:
- Energy rating of B
- U Value of 1.5W/m2K
- Air Class 4, 600Pa
- Water Class 9a, 600PA
- Wind Class AE, 2400Pa
- Document L Compliant
- PAS 24:2012

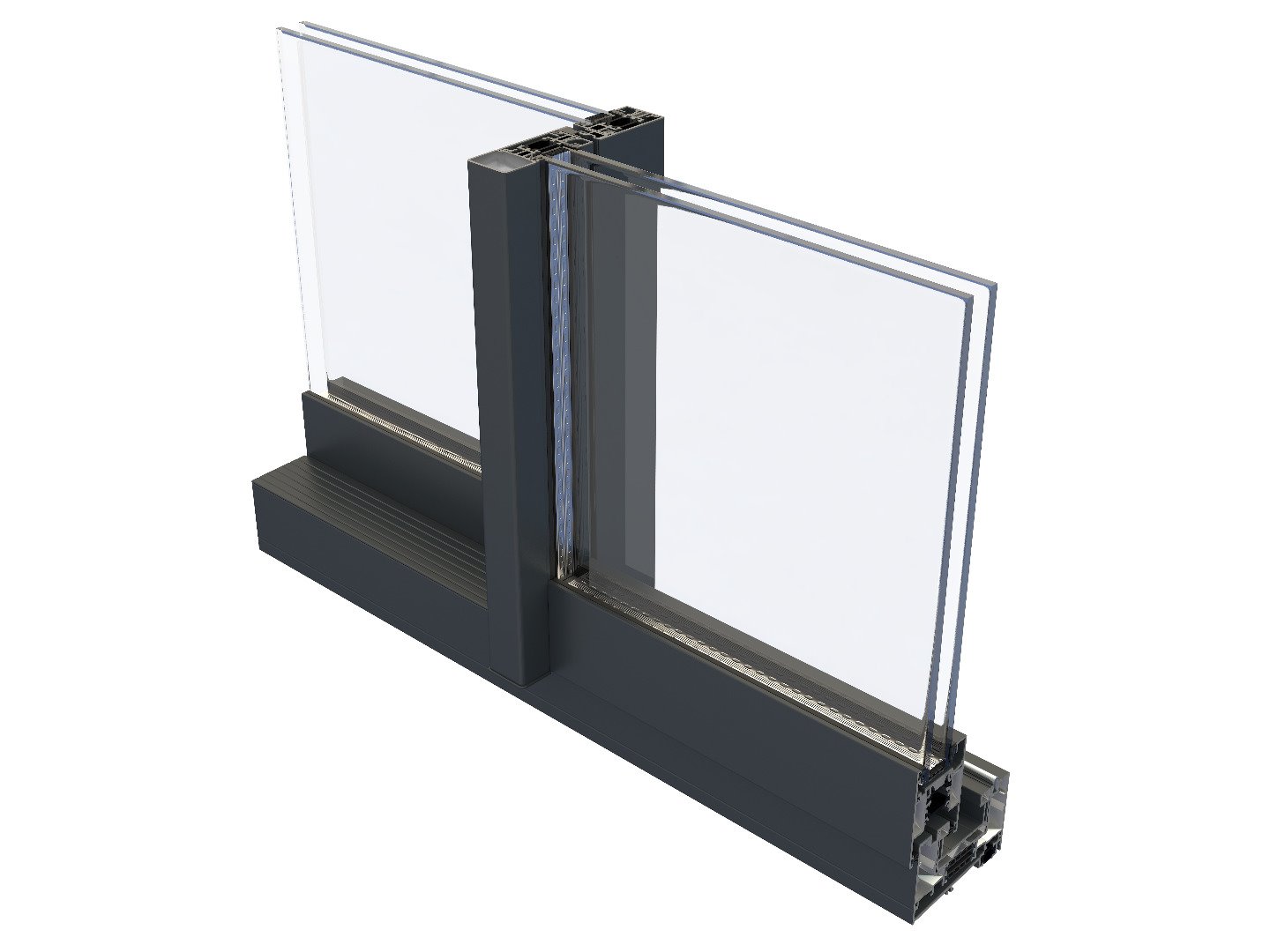

Visoglide Plus Sliding Patio
This adaptable system is suitable for use as either sliding commercial entrances where large opening apertures are required, or as dynamic residential sliding doors that maximise light and give stunning unimpeded views.
Visoglide Plus profiles have been designed to improve both strength and weather resistance.
Dimensions:
- Sliding Door Max Width within height and weight limits
- Sliding Door Max Height 2500mm
- Sliding Door Max Weight 200kg
- Glazing up to 38mm double and triple glazed
- Frame depth 100mm
Visoglide Specification:
- U Value of 1.6W/m2K
- Air Class 3, 600Pa
- Water Class 7a, 300PA
- Wind Class AE, 2400Pa
- Document L Compliant
- PAS 24:2012
Visofold 1000 Door
All Visofold doors have the option of either low thresholds for unimpeded, easy access, or rebated thresholds that offer improved weather resistance.
Visofold doors are available in a choice of standard or non-standard colours, including metallic, wood-structure, dual colour and Smart’s unique Sensations range of textured finishes.
Dimensions:
- Door Max Width 1200mm
- Door Max Height 2500mm
- Door Max Weight 100kg
- Glazing up to 24mm, 28mm, 32mm, 34mm and 38mm double and triple glazed
- Frame depth 70mm
Visofold 1000 Door Specification:
- U Value of 1.5W/m2K
- Air Class 4, 600Pa
- Water Class E, 750PA
- Wind Class 4, 1800Pa
- Document L Compliant
- PAS 24:2012
Why Choose Us?
We have a team of time served installers who are experienced in all aspects of frame installation. They are trained to a minimum of Nvq level 2 in glazing or fenestration and have ongoing training on new and upcoming products within the industry.
Our technical team can advise you on current building regulations and help guild you to achieving your desired outcome.
As a company we take the health and safety of our staff, customers and public extremely seriously. Our commitment is second to none in achieving this and as a result we are accredited by Chas, Safe Contractor an Construction Line health and safety bodies.
